Supported CPU
Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors, LGA 1700
Chipset
INTEL Z790
Form Factor
ATX
243.84mmx304.8mm
Audio
Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
PCI
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Type
DDR5
Slots
4 x DIMM
Supported Memory
7600+(OC)/ 7400 (OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC) /4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory
128GB
Graphics
1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
HDMI
1x HDMI
USB (s)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
6x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Front)
LAN Port (s)
Intel 2.5Gbps LAN
Wireless Communication module
Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage
5x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
6x SATA 6G port
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 do not support RAID function.
Audio Connectors
Audio Connectors
Internal I/O Ports
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen 2x2 Type C
TPM (Trusted Platform Module)
1x TPM pin header(Support TPM 2.0)
Special Features
1x EZ LED Control switch
1x 2-Digit Debug Code LED
4x EZ Debug LED
Manufacturing Warranty
3 years

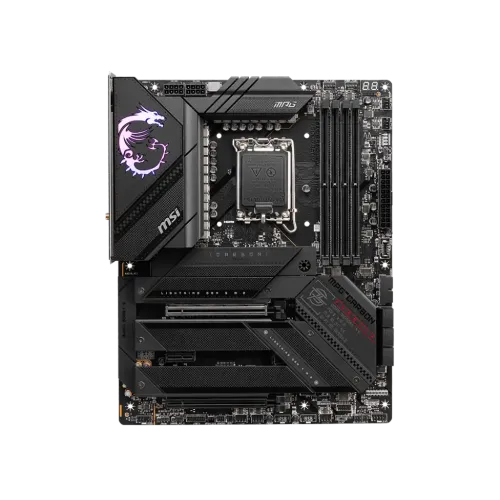

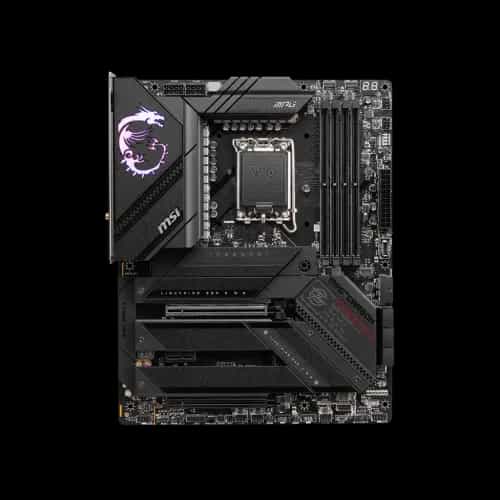

The MSI MPG Z790 CARBON WIFI Motherboard supports 14th/13th /12th Gen Intel Core / Pentium / Celeron processors for LGA 1700 socket. This ATX motherboard, which uses the Intel Z790 chipset and the LGA 1700 socket, has four DDR4 RAM slots that allow twin-channel memory and speeds up to 7600+(OC) MHz. It comes with PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2. It also enables RAID 0, 1, 5, and 10 through SATA or 0, 1, and 5 via M.2. GPUs and other adaptor cards may be installed through PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots. It comes with an enlarged heatsink with a heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. The 14th Gen Motherboard is equipped with 2.5 GbE Intel LAN and Wi-Fi 6E; quickly connects to wireless peripherals with Bluetooth 5.2. Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. The Realtek ALC4080 audio codec offers 7.1 channel surround sound, and the rear ports can be used for analog or digital output. Connect connected peripherals through two USB 2.0, two USB 3.2 Gen 1, and three USB 3.2 Gen 2x2 Type-A ports, or a USB 3.2 Gen 2x2 Type-C port. DisplayPort and HDMI are used to output video. A Flash BIOS button is also located on the rear I/O panel, and internal headers support front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connections, chassis intrusion, a TPM module, and other features. The MSI MPG Z790 CARBON WIFI 14th Gen Motherboard comes with a 03-year warranty.
The latest price of MSI MPG Z790 CARBON WIFI ATX Motherboard in Bangladesh is 54,000৳. You can buy the MSI MPG Z790 CARBON WIFI ATX Motherboard at the best price from our website or visit any of our showrooms.
