Supported CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Z690
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX
(30.5cm x 24.4cm)
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- ALC4080 + Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
PCI
Intel 12th Gen Processors*
1 x PCIe 5.0 x16 slot
- Intel 12th support PCIe 5.0 x16 mode
Intel Z690 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode)
1 x PCIe 3.0 x1 slot
Type
DDR5
Slots
4 x DIMM
Supported Memory
6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory
128GB
Graphics
1 x DisplayPort (Support max. 8K@60Hz as specified in DisplayPort 1.4)
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB:
Total 10 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:
Total 7 ports
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)
1 x Intel 2.5Gb Ethernet
Wireless Communication module
2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2 hardware ready
Supported Storage
Intel12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel Z690 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
6 x SATA 6Gb/s ports
Audio
1 x Front Panel Audio header (AAFP)
Internal I/O Ports
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x BMC header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
-CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 RGB headers
ASUS HYDRANODE
- 1 x Chassis fan support* (CHA_FAN1P)
* Visit ASUS Website for the latest compatibility list.
TPM header
Bundled Software
ROG Exclusive Software
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
- 5-Way Optimization with AI Overclocking
TPU
EPU
DIGI+ VRM
Turbo app
MyAsus
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
Manufacturing Warranty
3 years

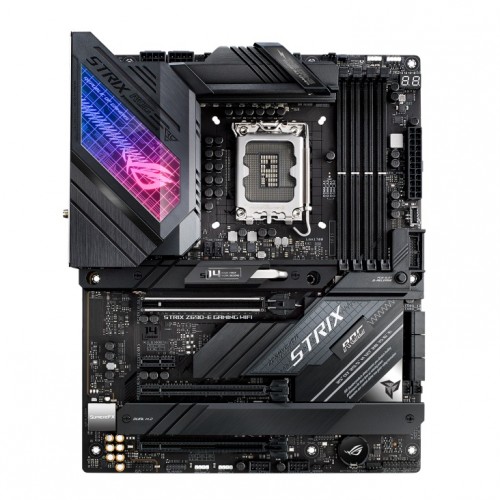

The Asus ROG STRIX Z690-E GAMING WIFI Motherboard features Intel LGA 1700 socket Ready for 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. It comes with an enhanced power solution. 16+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors. It features an Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped Heatpipe, four onboard M.2 heatsinks, and M.2 backplate for the M.2_1 slot. It features onboard Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard. The Asus Asus ROG STRIX Z690-E GAMING WIFI WIFI is supported with DDR5 memory, PCIe 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support, 4 PCIe 4.0 M.2. It comes with ASUS-exclusive AI Overclocking, AI Cooling, AI Networking, and Two-Way AI Noise Cancelation to simplify setup and improve performance. With four strategically placed M.2 slots, ROG Strix Z690-E Gaming WiFi leverages mighty CPU and chipset bandwidth to deliver lightning-fast PCIe 4.0 data transfers, Intel NVM Express RAID, and high-capacity drive options that blaze past traditional SATA-based SSDs. The Asus ROG STRIX Z690-E GAMING WIFI offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplates, and PCB cover. Asus 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. The Asus Asus ROG STRIX Z690-E GAMING WIFI comes with 3 years of warranty.
The latest price of Asus ROG STRIX Z690-E GAMING WIFI Intel 12th Gen Motherboard in Bangladesh is 47,500৳. You can buy the Asus ROG STRIX Z690-E GAMING WIFI Intel 12th Gen Motherboard at best price from our website or visit any of our showrooms.
