Supported CPU
Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel Z790 Chipset
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
PCI
Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Type
DDR5
Slots
4 x DIMM
Supported Memory
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory
Max. 192GB
Graphics
1 x DisplayPort**
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
HDMI
1 x HDMI Port
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3
Supported Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports*
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio
5 x Gold-plated audio jacks
Internal I/O Ports
Fan and Cooling related:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related:
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB:
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous:
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Special Features
Extreme Engine Digi+ :
- 5K Black Metallic Capacitors
ASUS Q-Design :
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution :
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY :
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync :
- Aura RGB header
- Addressable Gen 2 headers
Bundled Software
ROG Exclusive Software :
GameFirst VI
ROG CPU-Z
Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
Sonic Radar III
DTS Sound Unbound
ASUS Exclusive Software :
Armoury Crate
AIDA64 Extreme (60 days free trial)
Aura Creator
Aura Sync
Fan Xpert 4 (with AI Cooling II)
Power Saving
Two-Way AI Noise Cancellation
AI Suite 3
Easy Optimization with AI Overclocking
TPU
DIGI+ VRM
Turbo app
PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS :
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey :
MemTest86

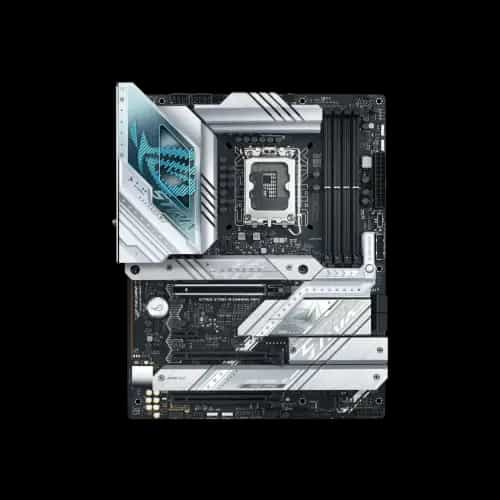

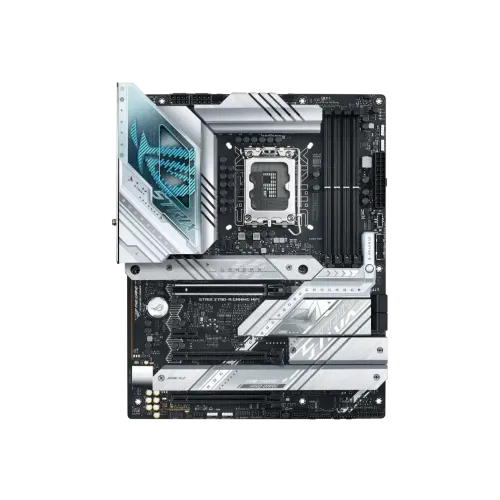

The ASUS ROG STRIX Z790-A GAMING WIFI DDR5 14th, 13th & 12th Gen ATX Motherboard is a top-of-the-line motherboard designed for gamers and enthusiasts looking to build a high-performance PC. It is equipped with an Intel LGA 1700 socket, making it ready for use with 13th-generation Intel Core and 12th-generation Intel Core, Pentium Gold, and Celeron processors. The Asus ROG STRIX Z790-A GAMING WIFI motherboard features a robust power solution with 16 + 1 power stages rated for 80A, dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors, providing stable power to support the latest multicore processors. It also boasts optimized VRM thermals with massive heat sinks connected by an L-shaped heat pipe, high-conductivity thermal pads, and an integrated I/O shroud. With four PCIe 4.0 M.2 slots all with heatsinks, including the tallest having a combo sink extension and backplate for additional cooling, the motherboard provides extensive M.2 support. Additionally, it offers abundant connectivity with a USB 3.2 Gen 2x2 Type-C rear I/O port and additional front panel connector, seven USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4. The Asus ROG STRIX Z790-A GAMING WIFI 14th Gen Motherboard is equipped with built-in WiFi 6E (802.11ax) and 2.5Gb Intel Ethernet with ASUS LANGuard for high-performance networking. It also features intelligent control with ASUS-exclusive AI overclocking, AI II cooling, AI networking, and bi-directional AI noise cancellation to simplify setup and improve performance.
In Bangladesh, you can get original Asus ROG STRIX Z790-A GAMING WIFI DDR5 ATX Motherboard From Star Gadget. We have a large collection of latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Gadget Shop to get yours at lowest price. The Asus ROG STRIX Z790-A GAMING WIFI Motherboard comes with 3 years warranty.
The latest price of Asus ROG STRIX Z790-A GAMING WIFI DDR5 ATX Motherboard in Bangladesh is 57,500৳. You can buy the Asus ROG STRIX Z790-A GAMING WIFI DDR5 ATX Motherboard at best price from our website or visit any of our showrooms.
